Vertical Honey Packing Machine Automatic Liquid Sachet Filling 2.8kw

Brand Name : PLC

Model Number : PL-220

Certification : CE

Place of Origin : China

MOQ : 2set

Price : 6000-8000usd/set

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 100 units in a month

Delivery Time : 20 working days

Packaging Details : Wooden case

product name : automatic honey packing machine

model : PL-220

driven type : Pneumatic type

bag type : back seal/side seal

After-sales Service Provided : Video technical support, Field installation, commissioning

Speed : 80-120 bags /min

power : 2.8kw

dimension : 1200*1100*2350 mm

making material : Stainless steel 304

Contact Now

Vertical Honey Packing Machine Automatic Liquid Sachet Filling 2.8kw

Quick Overview
PLC-controlled, all-in-one unit forms, fills, seals and cuts in a single cycle.
Handles 1-30 g liquids or pastes at 80-150 sachets/min, bag size L 20-145 mm × W 20-100 mm.
Runs on 220 V household supply, needs only 0.63 m² floor space.

2. Parameter

model	PL-220GSYB
measuring range	1-30g
bag size	(back seal)L20-145mm,W20-100mm;(side seal)L20-145mm,W30-100mm
dose range	magnetic pump,rotor pump,piston pump
voltage	220V,50-60Hz,2KW
control system	PLC control
speed	80-120bag/min
bag type	back seal/side seal
dimension	L900W700H1720mm
weight	300kg
package material	bopp/pe/pet,any heat sealing laminated film roll

3. Products description

Vertical Honey Packing Machine Automatic Liquid Sachet Filling 2.8kw

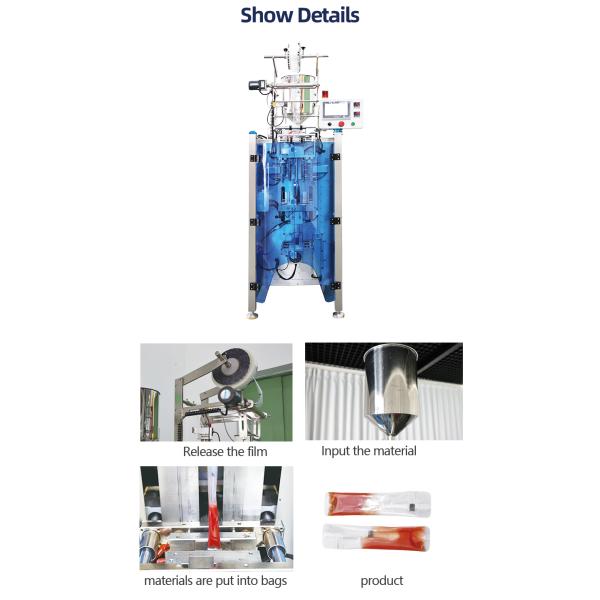

4. Product deails

Key Features

Three pumps selectable: magnetic (low-viscosity), rotor (medium), piston (high-viscosity / micro particles)
Servo film-pull + photo-eye registration: print-to-cut error ≤ ±1 mm
Four-zone PID temperature control, seals any heat-sealable laminate (BOPP/PE/PET)
Food-grade 304 SS & anodized aluminium, washable with water
No film / no product / open door / over-temperature → instant stop & alarm
10 recipe memory, tool-free dismantling for cleaning, product change < 3 minCompany Porifle
Guangzhou Penglai Packing Machinery Co.,Ltd is a modern enterprise that engaged in Design, R&D, manufacture and sales of various packing machinery. We are located in Shiji Town, Panyu District, Guangzhou, a city with beautiful environment, advanced software and hardware, and the first standard integrative management.To design the top-grade packing machine is our products orientation, we insist “ quality first, customer-oriented” marketing idea and” honest service, keep improving” work idea. We will supply one-year warranty, durable maintaining, repair support, training, technology enquiry, spare parts and process with supplied materials etc.

Vertical Honey Packing Machine Automatic Liquid Sachet Filling 2.8kw

FAQ

1. Can your machine meet our needs well?

After receiving your inquiry, we will confirm your packing material, packing volume, bag size, packing speed and precision,

and any other requirments, and then give you the proposal according to your specific requirments.

Every machine is customized to meet your needs well.

2. Are you factory or trading company?

We are the factory, and especially R&D, manufacture and sell various packing euipments.

We have engaged in the packing R&D and production over 10 years.

3. What's your payment way?

T/T by our bank account directly, or by trade assurance service, or by West Union, or in cash.

4. How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality,

and also you can arrange for quality checking by yourself or by your contacts in Guangzhou.

5. We are afraid you won't send us the machine after we send you the money?

Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service,

guarantee your money, and guarantee your machine's on-time delivery and machine quality.

6. Why we should choose your company?

We are professtional in packing machines over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
